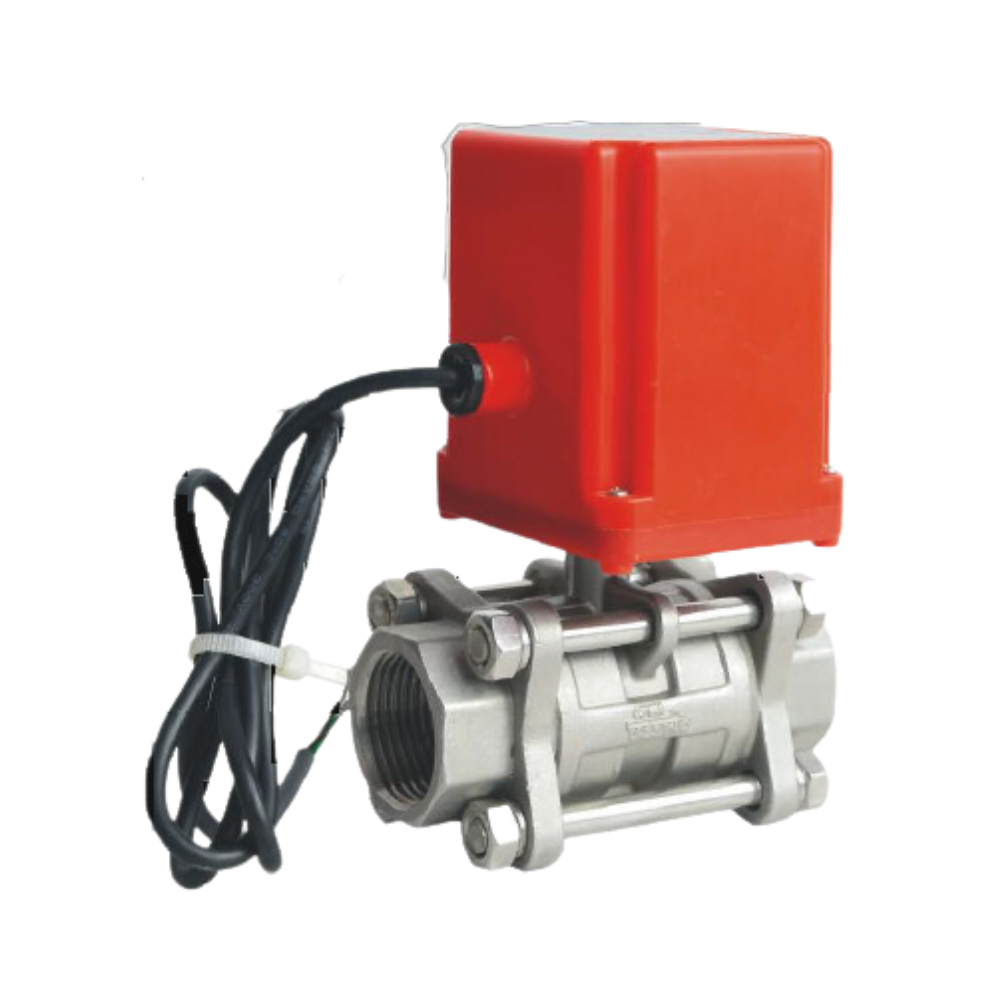

Ceramic Core Ball Valve, Stainless Steel Body, 0.75 Inch, Female Thread, Electric Operation, 6V

Type: Ball Valve
Body: 316L Stainless Steel
Size: 0.75 Inch (G 3/4) (Metric sizes available)
Connection Type: Female Thread
Operation: Electric
Volts: 6V
Control: 2-Wire
Open/Close Time: 12.5s/3s
Motor Power: 2W-4W
Actual Power: 0.4W-2.5W
Part Number: BVSS-075-FT1-E062-0

Operating pressure: 0-1.6MPa
Operating temperature: 1-60℃
Protection class: IP65

Features:

The valve body is made of an acid and alkaline resistant 316L stainless steel, known for its excellent corrosion resistance and mechanical properties at both high and low temperatures. Suitable for water, air, oil, acid, and alkali corrosive mediums as well as low viscosity fluid within the chemical industry.

Self balancing design for low-torque operation.

Hermetically-sealed for high resistance to corrosion, abrasion, and chemicals. Precisely fitted ball cores and seats to ensure zero leakage.

Ideal for water saving systems, industrial automatic control systems, automatic sewage systems, environmental protection projects, water supply and drainage, food and water treatment, and irrigation systems.

Metric Sizes Available, Non-NPT Options Available

Contact us for volume pricing
